Ovia OV751301DLBMF Inceptor 30W 600mm x 600mm 3 in 1 Dimmable Backlit Low-Glare LED Panel DL - White

Ovia provides an extensive range of panel lighting and downlights for your commercial environment. They come with a range of multiple features and benefits, some including different colour temperature options.

The Inceptor® Slate UGR Backlit Panel Light.

General Information

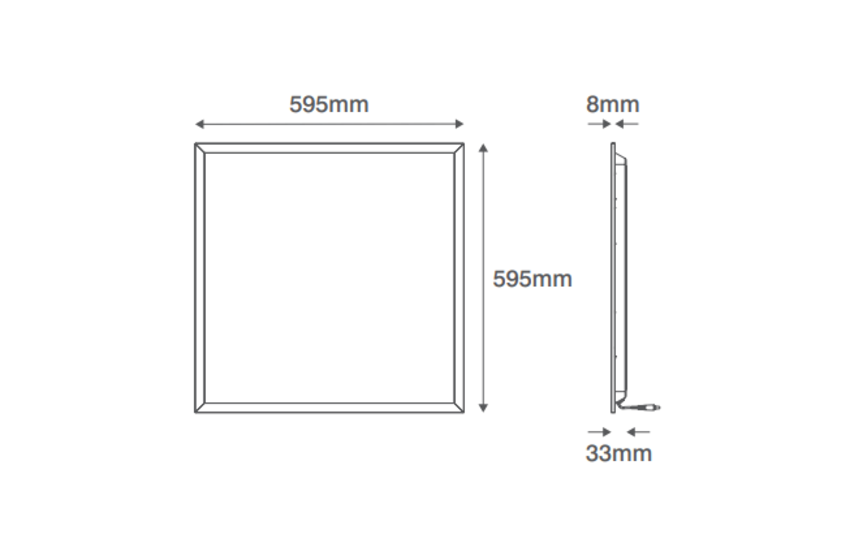

• Dimensions: (mm) 595 (L) x 595 (W) x 33 (D)
• Materials: Frame: Powdercoated Aluminium. Diffuser: Polystyrene. Back Cover: Powdercoated Steel.
• Finish: White (RAL 9003)
• Product Weight: (Kg) 1.9
• Ingress Protection: IP20
• Impact Rating (IK): 06
• Flammability Rating: TP(a)
• Warranty 5 years

Supply & Power Information

• Input Voltage & Frequency (V~ / Hz) 200-240 50/60
• Safety Class Class II (Double Insulated)
• Circuit Wattage (W) 30
• Input Current (mA) 125
• Inrush Current/Time <30A(Twidth=120us measured at 50%Ipeak) @ 230Vac
• Power Factor >0.9
• Operating Temperature (°C) -20 to +40
• Critical Temperature (°C) +75
• Driver Information: Remote 3 In 1 Multi-Function Driver Supplied
• Input Terminations: Push-fit Terminals

Luminaire Output

• Colour Temperature 6000K
• Colour Render Index (CRI) >80
• Typical Luminous Flux (lm) 3200
• Efficacy (lm/W) 107

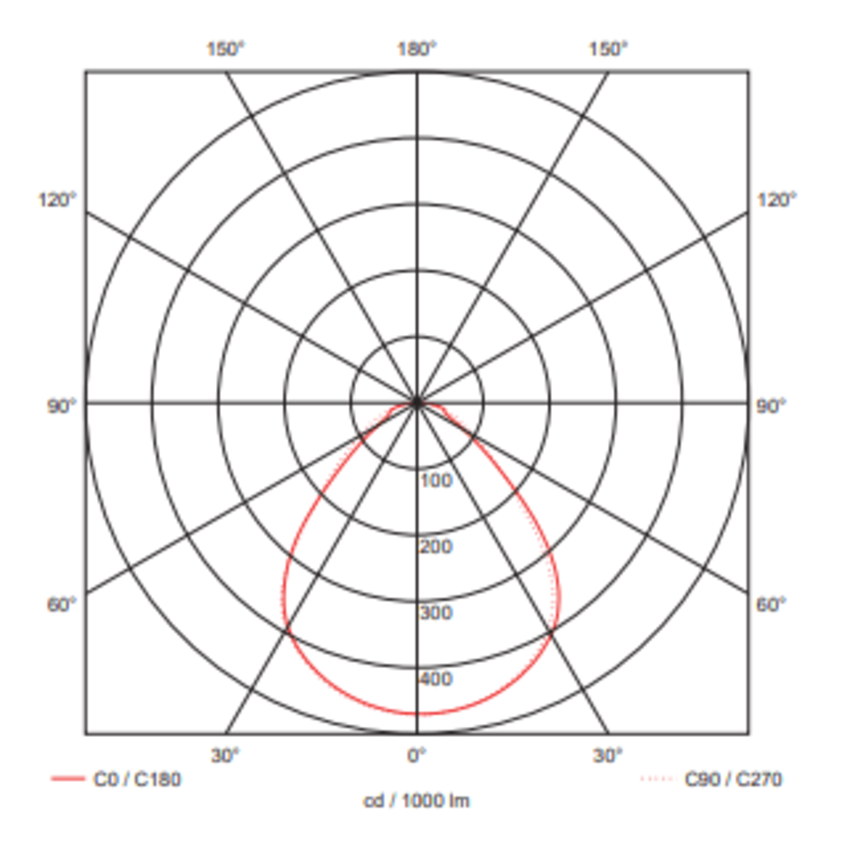

• Beam Angle (°) 120
• Unified Glare Rating (UGR) <19
• LED Lifetime (L70) 50,000 Hours
• Flicker Free

Dimming Information

• Dimmable: Yes
• Dimming Format: DALI, Switch Dim, 1-10V, 10V PWM
• DALI Voltage (V DC): 9.5V to 22.5V
• DALI Connectable Driver: Up To 64 Drivers To One DALI Control Line
• DALI Line Length Max;
• 100M Max. - 2 x 0.50mm²
• 150M Max. - 2 x 0.75mm²
• 200M Max. - 2 x 1.00mm²
• 300M Max. - 2 x 1.50mm²
• Switch Dim Control Type: Switch Dim Using Retractive Switch(es)
• Switch Dim Voltage: 230V~ input to driver
• Switch Dim Control Format: Short Press: ON / OFF; Press & Hold: DIM
• Analogue Control Type: 1-10V / 10V PWM Dimming
• Analogue (1-10V) Parameters: Up to 16 drivers with 20 metres maximum between drivers
• Analogue (1-10V) Information: An additional isolation switch will be required to turn the driver On and Off

Additional Information

• Suspension hooks pre-fitted to the back

Compatible Accessories

• OVSUSP731 - Suspension Wire Kit
• OVREC731 - 600mm x 600mm Recess Frame Kit
• OVSURF734 - 600mm x 600mm Surface Frame Kit
• OVEMCG50 - 3 Hour Emergency Pack
• OVEMCG50ST - 3 Hour Self-Test Emergency Pack
