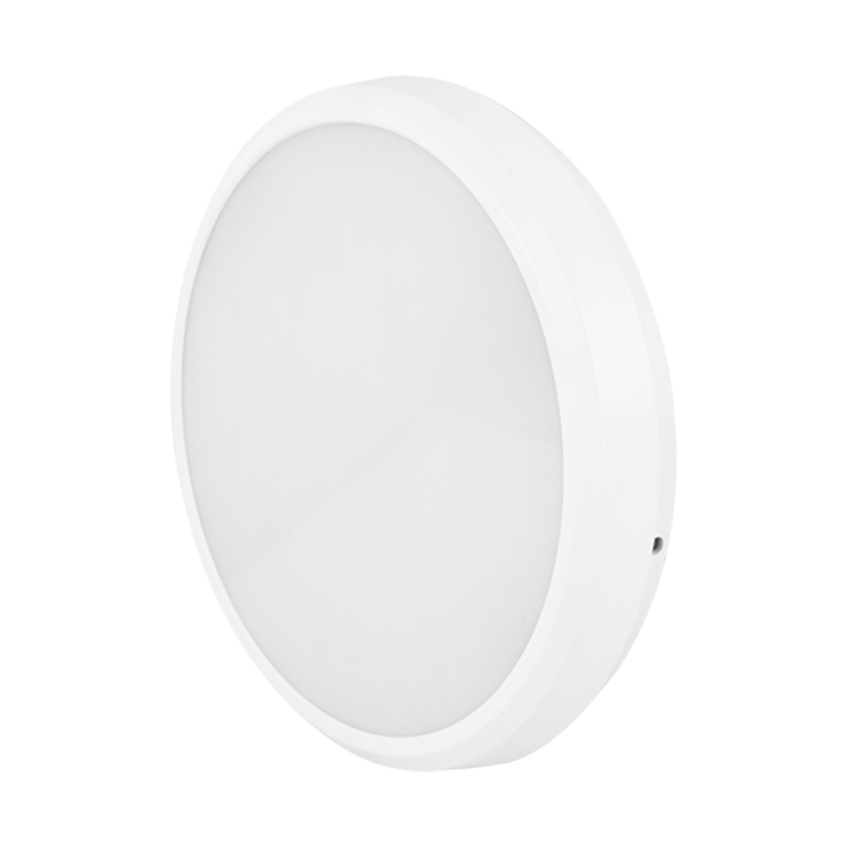

Ovia OV9110016MW Evo Slim 16W LED Bulkhead - Microwave Sensor - IP65 - CTA - White
Product CodeOV9110016MW
£41.63 inc. VAT
£34.69 exc. VAT
Ovia's EVO Slim LED Bulkheads, part of the Utility range which offers a multitude of features to suit a variety of spaces. General Information Dimensions: 295mm Diameter x 57mm (D) Materials ... Read More
Ovia OV9110016MW Evo Slim 16W LED Bulkhead - Microwave Sensor - IP65 - CTA - White Description
Ovia's EVO Slim LED Bulkheads, part of the Utility range which offers a multitude of features to suit a variety of spaces.
General Information

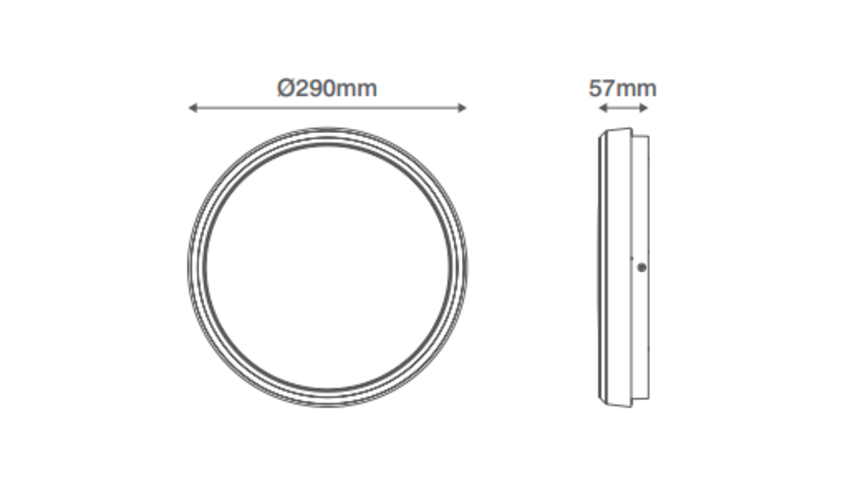

- Dimensions: 295mm Diameter x 57mm (D)
- Materials: Base & Diffuser: Polycarbonate (UV Stabilised). LED Array: Aluminium Substrate.
- Finish: White (RAL 9010)
- Product Weight 0.84Kg
- Ingress Protection IP65
- Corridor Function Yes (10% or 25% Output)
- Flammability UL94-V2
- Warranty 5 Years
Supply & Power
- Input Voltage & Frequency 200-240V~ 50/60Hz
- Electrical Safety Class II (Double Insulated)
- LED Wattage 16W
- Circuit Wattage 16W
- Input Current 120mA (Max.)
- Power Factor >0.95
- Ambient Temperature (Ta) -15°C - +50°C
- Critical Temperature +80°C
- LED Driver: Integrated
- Termination: 3 Pole Push-fit Terminals
Luminaire Output
- Colour Temperature: 3000K 4000K 6000K
- Typical Luminous Flux: 1440lm 1500lm 1480lm
- Efficacy: 90lm/W 93lm/W 92lm/W
- Beam Angle: 112°
- CRI >80
- LED Lifetime (L70) 30,000 Hours
Microwave Information
- Detection Angle ≤150°
- Detection Distance 6 - 14 Metres Diameter
- Installation Height 2.5 - 4.5 Metres
- Hold Time (Time Delay) 5 secs / 90 secs / 3 mins / 10mins
- Lux Level 15 Lux / Disable
- Detection Area: 50% or 100%
- Dimming Stand-by Period 0 sec / 30 secs / 10 mins / +∞
- Stand-by Dimming Level 10% or 30% (Corridor Functions)
- HF System 5.8GHz ±75MHz
- Master/Slave Facility: Not Available
