Ovia OV9300BK16MW Evo 16W LED Bulkhead With Knockouts - Microwave Sensor - IP65 - CTA - Black
Product CodeOV9300BK16MW
£43.43 inc. VAT
£36.19 exc. VAT
Ovia's EVO LED Bulkheads as part of the Utility range which offers a multitude of features and contractor approved modern designs to suit a variety of spaces. General Information Dimensions: ... Read More
Ovia OV9300BK16MW Evo 16W LED Bulkhead With Knockouts - Microwave Sensor - IP65 - CTA - Black Description
Ovia's EVO LED Bulkheads as part of the Utility range which offers a multitude of features and contractor approved modern designs to suit a variety of spaces.
General Information

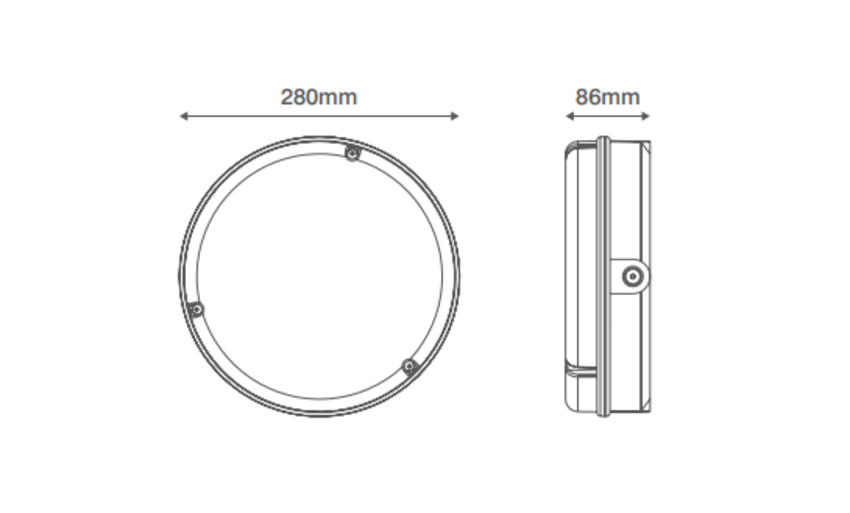

- Dimensions: 280mm Diameter x 86mm (D)
- Materials: Base & Diffuser: Polycarbonate (UV Stabilised). Gear Tray: Powdercoated Steel. LED Array: Aluminium Substrate.
- Finish Black (RAL 9004)
- Product Weight 0.88Kg
- Corridor Function Yes (10% or 25% Output)
- Ingress Protection IP65
- Flammability Rating UL94-V2
- Warranty 5 years
Supply & Power Information
- Input Voltage & Frequency 200-240V~ 50/60Hz
- Safety Class II (Double Insulated)
- Circuit Wattage (W) 16
- LED Wattage (W) 16
- Input Current (mA) 160
- Power Factor >0.95
- Ambient Temperature (Ta) -15°C - +50°C
- Driver Information: Integrated
- Maximum Critical Temperature (°C) +80
- Input Terminations: 3 Pole Push-fit Terminals
Luminaire Output
- Colour Temperature (K) 3000 4000 6000
- Typical Luminous Flux 1500lm 1650lm 1550lm
- Efficacy 86lm/W 100lm/W 93lm/W
- Beam Angle (°) 114
- Colour Rendering Index (CRI) >80
- LED Lifetime (L70) (Hours) 30,000
Microwave Information
- Detection Angle ≤150°
- Detection Distance 8 - 14 Metres Diameter
- Installation Height 2.5 - 6 Metres
- Hold Time (Time Delay) 5 secs / 90 secs / 3 mins / 10mins
- Lux Level 15 Lux / Disable
- Detection Area: 50% or 100%
- Dimming Stand-by Period 0 sec / 30 secs / 10 mins / +∞
- Stand-by Dimming Level 10% or 25% (Corridor Functions)
- HF System 5.8GHz ±75MHz
- Master/Slave Facility: Not Available
