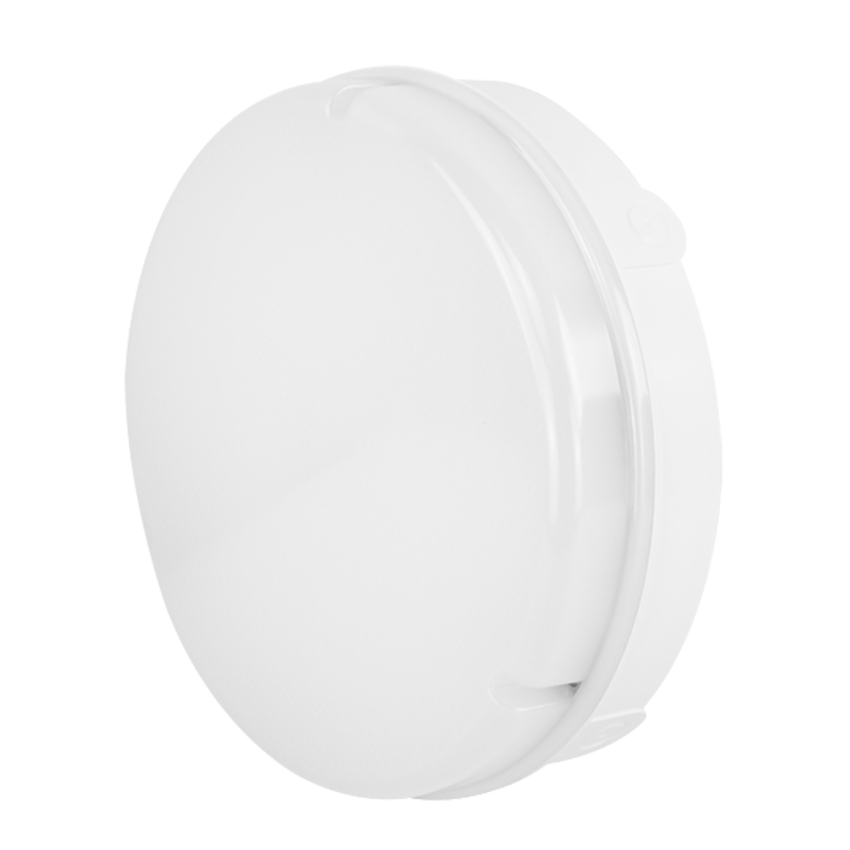

Ovia OV9300WH12MWEMPC Evo 12W LED Bulkhead With Knockouts - Microwave Sensor, Emergency & Photocell - IP65 - CTA - White

Ovia's EVO LED Bulkheads as part of the Utility range which offers a multitude of features and contractor approved modern designs to suit a variety of spaces.

General Information

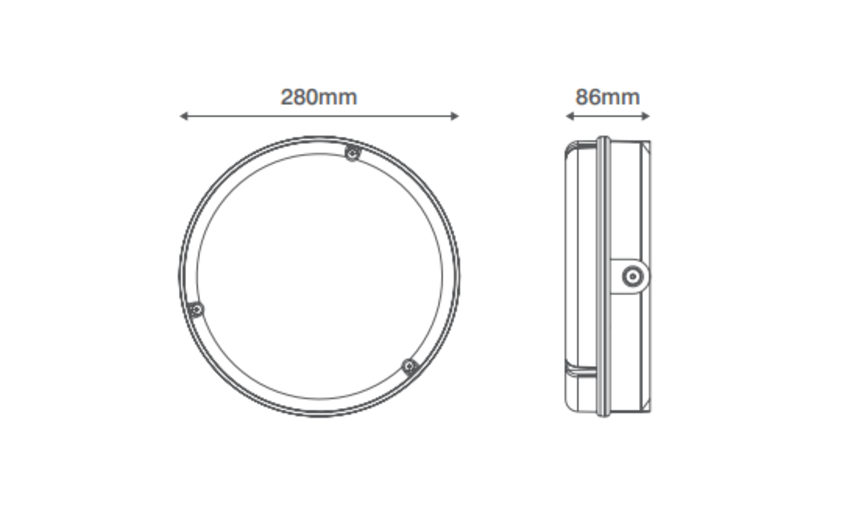

• Dimensions: 280mm Diameter x 86mm (D)
• Materials: Base & Diffuser: Polycarbonate (UV Stabilised). Gear Tray: Powdercoated Steel. LED Array: Aluminium Substrate.
• Finish: White (RAL 9010)
• Product Weight 1.1Kg
• Ingress Protection IP65
• Corridor Function Yes (10% or 25% Output)
• Flammability UL94-V2
• Warranty 5 Years (4 Years Battery)

Supply & Power

• Input Voltage & Frequency 200-240V~ 50/60Hz
• Electrical Safety Class II (Double Insulated)
• LED Wattage 12W
• Circuit Wattage 14W
• Input Current 120mA (Max.)
• Power Factor >0.95
• Ambient Temperature (Ta) 0°C - +50°C
• Critical Temperature +80°C
• LED Driver: Integrated
• Termination: 4 Pole Push-fit Terminals

Luminaire Output

• Colour Temperature: 3000K 4000K 6000K
• Typical Luminous Flux: 1200lm 1300lm 1200lm
• Efficacy: 85lm/W 92lm/W 85lm/W
• Beam Angle: 114° 114° 114°
• Emergency Luminous Flux 122lm 122lm 122lm
• CRI >80
• LED Lifetime (L70) 30,000 Hours

Microwave Information

• Detection Angle: ≤150°
• Detection Distance: 8 - 14 Metres Diameter
• Installation Height: 2.5 - 6 Metres
• Hold Time (Time Delay): 5 secs / 90 secs / 3 mins / 10mins
• Lux Level: 15 Lux / Disable
• Detection Area: 50% or 100%
• Dimming Stand-by Period: 0 sec / 30 secs / 10 mins / +∞
• Stand-by Dimming Level: 10% or 25% (Corridor Functions)
• HF System: 5.8GHz ±75MHz
• Master/Slave Facility: Not Available

Emergency Information

• Installation Requirements: Can be wired as maintained or non-maintained
• Battery Specification: Li-Ion 2000mAh 3.7V
• Battery Warranty: 4 Years
• Emergency Duration: 3 Hours Minimum

Photocell Information
Switching Light Level 70 Lux (Automatic Dusk / Dawn)
