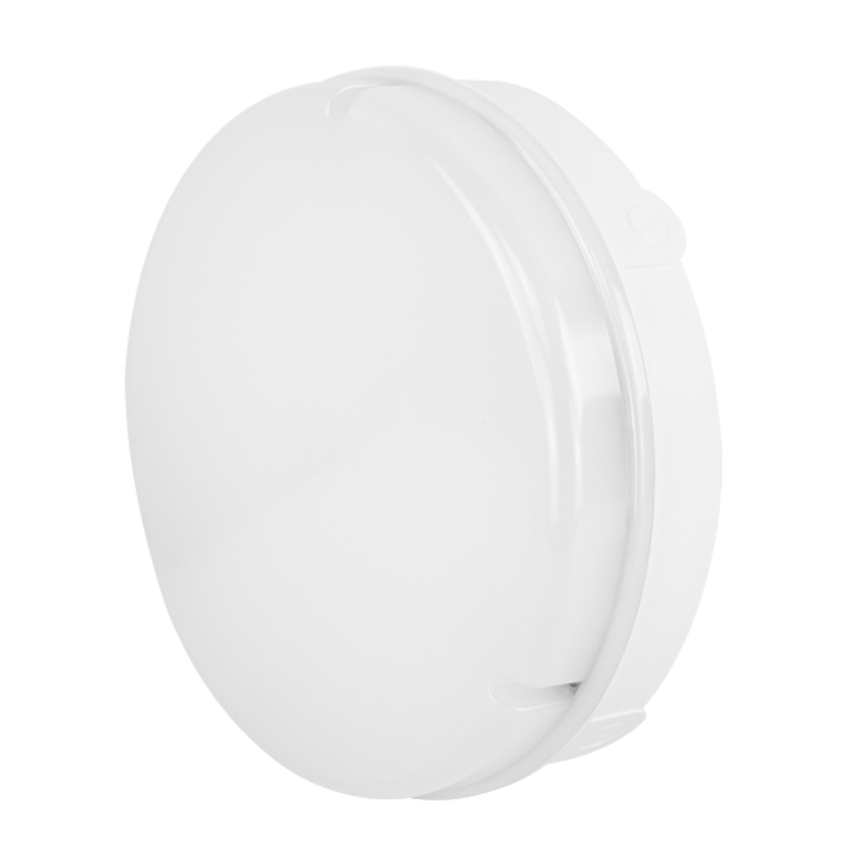

Ovia OV9300WH12MWEMST Evo 12W LED Bulkhead With Knockouts Microwave Sensor & Self-Test Emergency IP65 CTA White

Product CodeOV9300WH12MWEMST

0 Reviews

Write Review

View The Range

£70.43 inc. VAT

£58.69 exc. VAT

Ovia's EVO LED Bulkheads as part of the Utility range which offers a multitude of features and contractor approved modern designs to suit a variety of spaces. General Information Dimensions: ... Read More

Quantity

Total

£70.43 inc. VAT

Add to Cart

Ovia OV9300WH12MWEMST Evo 12W LED Bulkhead With Knockouts Microwave Sensor & Self-Test Emergency IP65 CTA White Description

Ovia's EVO LED Bulkheads as part of the Utility range which offers a multitude of features and contractor approved modern designs to suit a variety of spaces.

General Information

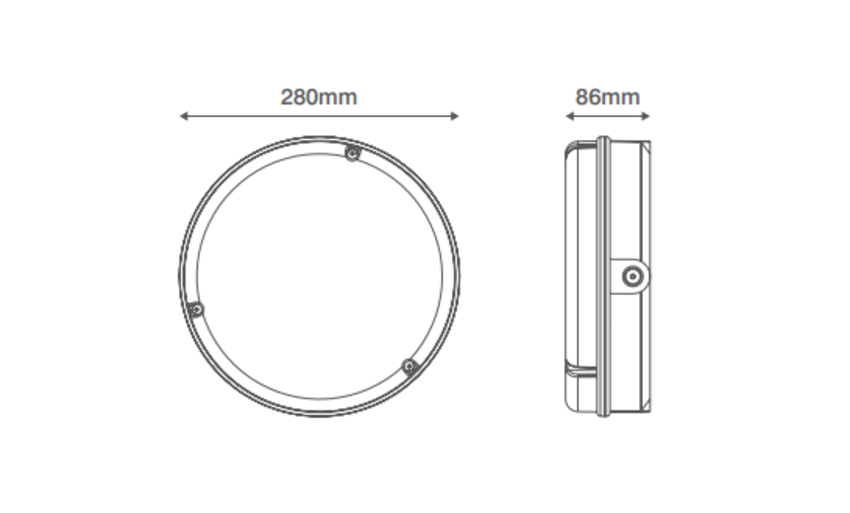

Dimensions: (mm) 280 (Dia.) x 86 (D)
Materials: Base & Diffuser: Polycarbonate (UV Stabilised). LED Array: Aluminium Substrate.
Finish: White (RAL 9010)
Product Weight (Kg) 0.97
Ingress Protection IP65
Impact Rating (IK) 08
Flammability Rating UL94-V2
Mounting: Ceiling or Wall
Warranty 5 years (Battery 4 years)

Supply & Power Information

Input Voltage & Frequency (V~ / Hz) 220-240 50/60
Safety Class II
Circuit Wattage (W) 14
LED Wattage (W) 12
Input Current (mA) 120
Power Factor >0.95
Driver Information: Integrated
Operating Temperature (°C) 0 to +50
Maximum Critical Temperature (°C) +80
Input Terminations: 4 Pole Push-fit Terminals

Luminaire Output

Colour Temperature (K) 3000 4000 6000
Typical Luminous Flux (lm) 1200 1300 1200
Efficacy (lm/W) 85 92 85
Beam Angle (°) 114
Corridor Luminous Flux (15%) 120 130 120
Corridor Luminous Flux (25%) 300 325 300
Emergency Luminous Flux (lm) 122 122 122
Colour Rendering Index (CRI) >80
LED Lifetime (L70) (Hours) 30,000

Dimming Information

Dimmable: Yes
Dimming Format: Corridor Function
Corridor Dimming Levels (%) 10 or 25

Sensor Information

Detection Area Settings (%) 50 or 100
Detection Angle (°) ≤150
Light Level Settings (Lux) 15 / Disable
HF System 5.8GHz ±75MHz
Master/Slave Facility: Not Available

Emergency Backup Information

Self-Test Facility: Yes
Emergency Luminous Flux (lm) 122
Battery Specification Li-Ion 2000mAh 3.7V
Minimum Duration (Hours) 3
Battery Warranty (Years) 4
