Ovia OV9500WH9MS3EMST Inceptor Evo 18W LED Utility Bulkhead With Microwave & Emergency Self Test - IP65 - 4200K - White

Ovia's Inceptor® EVO LED Bulkheads, part of the Utility range which offers a multitude of features to suit a variety of spaces.

General Information

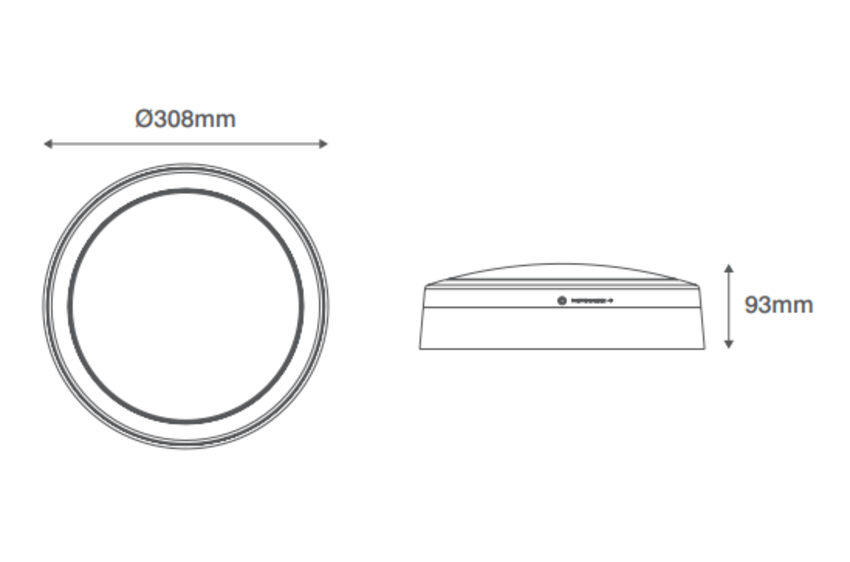

• Dimensions: 308mm Diameter x 93mm (D)
• Materials: Base, Outer Ring, Circular Facia & Diffuser: Polycarbonate (UV Stabilised). Gear Tray, Driver Housing & Cable Grip: Polycarbonate (UV Stabilised). LED Array: Aluminium Substrate. Moisture Seal: Silicone.
• Finish: White (RAL 9010)
• Product Weight 1.83Kg
• Cutout: 282-286mm Diameter
• Corridor Function Yes (15% Output)
• Ingress Protection IP65
• Flammability: Tp(a)
• IK Rating IK08
• Mounting: Ceiling or Wall and Surface or Semi-recessed
• Warranty 5 Years (4 Years Battery)

Supply & Power

• Input Voltage & Frequency 230V~ 50/60Hz
• Electrical Safety Class II (Double Insulated)
• LED Wattage 10W
• Circuit Wattage 18W
• Input Current 107mA
• Ambient Temperature (Ta) -5°C - +45°C
• LED Driver: Integrated
• Prewired Flow™ Connector: Yes (4 Pole CT203-F Screw Terminals)

Luminaire Output

• Colour Temperature 4200K
• CRI 68.4
• Typical Luminous Flux 1560lm
• Efficacy 89lm/W
• Beam Angle 120°
• LED Lifetime (L70) 50,000 Hours

Microwave Information

• Detection Angle 360°
• Detection Distance 10 Metres
• Time Delay 8 Seconds to 20 Minutes
• Lux Level 2 - 2000 Lux
• HF System 5.8GHz CW Radar, ISM Band

Emergency Information

• Installation Requirements: Can be wired as maintained or non-maintained
• Self-Test Facility Yes
• Battery Specification Ni-Cd 3000mAh 3.6V (Max Cell Temperature 50°C)
• Battery Warranty 4 Years
• Emergency Duration 3 Hours Minimum

Accessories

OV9001BK/WH Circular Metal Housing for Inceptor® EVO - Black or White

OV9002BK/WH Eyelid Metal Housing for Inceptor® EVO - Black or White

OV9003BK/WH Grille Metal Housing for Inceptor® EVO - Black or White
