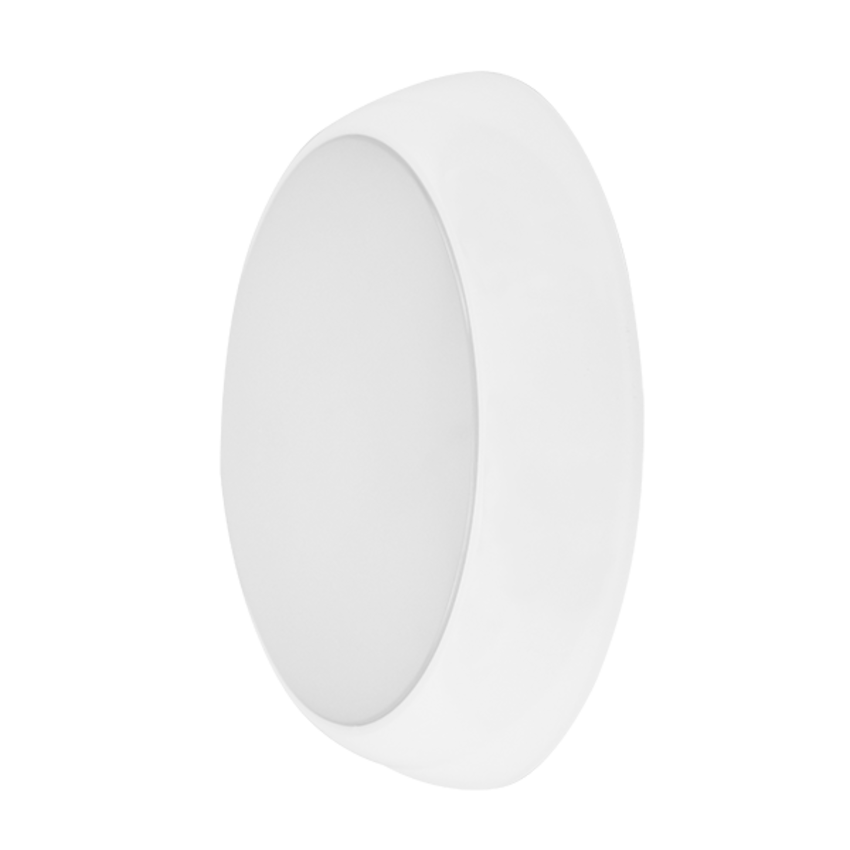

Ovia OV9700WH12EMST Evo Orb 12W LED Bulkhead Self-Test Emergency - IP65 - CTA - White
Product CodeOV9700WH12EMST
£55.43 inc. VAT
£46.19 exc. VAT
Ovia's EVO Orb LED Bulkheads as part of the Utility range which offers a multitude of features and contractor approved modern designs to suit a variety of spaces. General Information Dimensi ... Read More
Ovia OV9700WH12EMST Evo Orb 12W LED Bulkhead Self-Test Emergency - IP65 - CTA - White Description
Ovia's EVO Orb LED Bulkheads as part of the Utility range which offers a multitude of features and contractor approved modern designs to suit a variety of spaces.
General Information

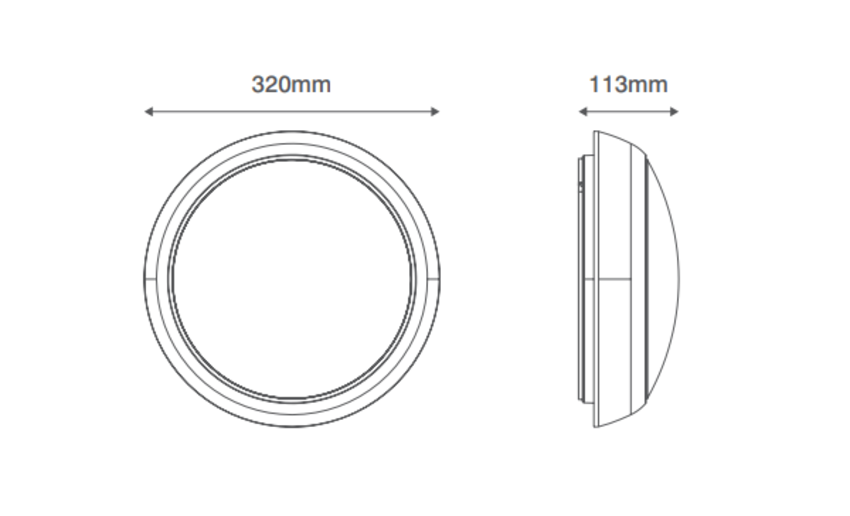

- Dimensions: 320mm Diameter x 113mm (D)
- Materials: Base & Diffuser: Polycarbonate (UV Stabilised). LED Array: Aluminium Substrate.
- Finish: White (RAL 9010)
- Product Weight 1Kg
- Impact Rating (IK) 08
- Ingress Protection IP65
- Flammability UL94-V2
- Mounting: Ceiling or Wall
- Warranty 5 Years (4 Years Battery)
Supply & Power
- Input Voltage & Frequency 220-240V~ 50/60Hz
- Electrical Safety Class II
- LED Wattage 12W
- Circuit Wattage 14W
- Input Current 120mA (Max.)
- Power Factor >0.95
- Ambient Temperature (Ta) 0°C - +50°C
- Critical Temperature +80°C
- LED Driver: Integrated
- Termination: 4 Pole Push-fit Terminals
Luminaire Output
- Colour Temperature: 3000K 4000K 6000K
- Typical Luminous Flux: 950lm 1100lm 1050lm
- Efficacy: 67lm/W 78m/W 75lm/W
- Beam Angle: 107°
- Emergency Luminous Flux 98lm 98lm 98lm
- CRI >80
- LED Lifetime (L70) 30,000 Hours
Emergency Backup Information
- Self-Test Facility: Yes
- Emergency Luminous Flux (lm) 98
- Installation Can be wired as maintained or non-maintained
- Battery Specification Li-Ion 2000mAh 3.7V
- Minimum Duration (Hours) 3
- Battery Warranty (Years) 4
