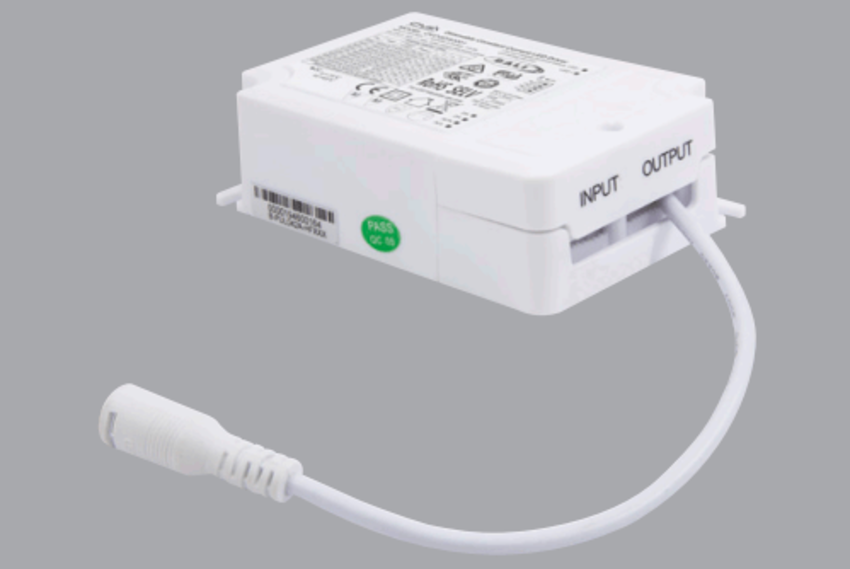

OviaOVCGMF0003 240V~ 12.7-33.7W 3 in 1 Multi-function Dimmable Constant Current LED Driver

Ovia provides an extensive range of panel lighting and downlights for your commercial environment. They come with a range of multiple features and benefits, some including different colour temperature options.

These E-Sprite fittings can be used with our Multi-Function LED Drivers on all 3 CTA Switchable Colour Temperatures.

Also compatible with the 4W Universal Emergency Pack.

General Information

• Dimensions (mm): 103 (L) x 68 (W) x 30 (D)
• Materials Housing: Polycarbonate
• Finish: White
• Product Weight: 0.14kg
• Ingress Protection: IP20
• Flicker Free: Yes
• Compatible Fitting(s): Alupanel OV6209 & OV6212
• Warranty 5 years

Supply & Power Information

• Input Voltage & Frequency (V~ / Hz) 220-240 50/60
• Safety Class: Class II (Double Insulated)

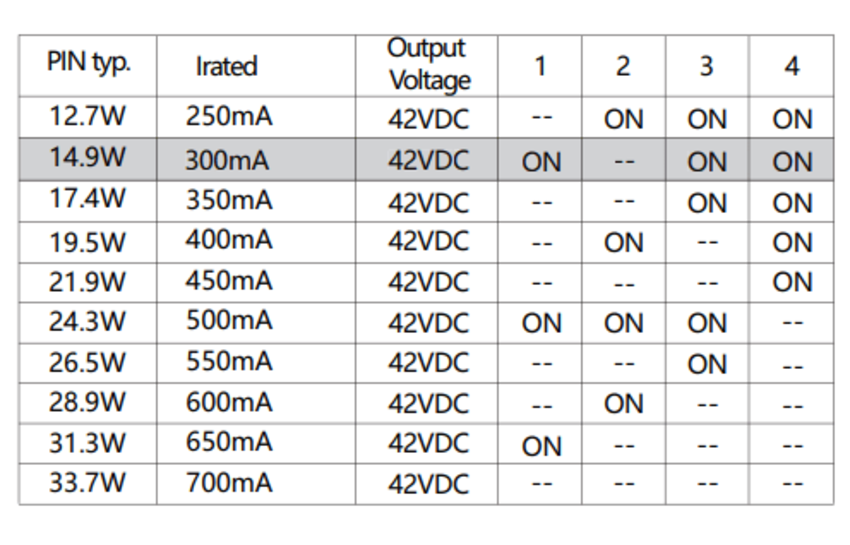

• Output Adjustment Type: DIP Switches
• Input Voltage Range (V DC) 3 - 42
• Turn On Delay <0.5 Seconds @ 230V~
• 16A Circuit Breaker (Number of Units) (B Curve - 33 Units) @ 230V~, (C Curve - 56 Units) @ 230V~
• Rated Power (W) 12.7-33.7
• Operating Temperature (°C) -20 to +45
• Maximum Critical Temperature (°C) +75
• Input Terminations: Push-fit Terminals
• Rated Power Maximum (W) 29.4

Dimming Information

• Dimmable: Yes
• Dimming Format: DALI, Switch Dim, 1-10V, 10V PWM
• DALI Voltage (V DC) 9.5V to 22.5V
• DALI Connectable Driver: Up To 64 Drivers To One DALI Control Line
• DALI Line Length Max;
• 100M Max. - 2 x 0.50mm²
• 150M Max. - 2 x 0.75mm²
• 200M Max. - 2 x 1.00mm²
• 300M Max. - 2 x 1.50mm²
• Switch Dim Control Type: Switch Dim Using Retractive Switch(es)
• Switch Dim Voltage: 230V~ input to driver
• Switch Dim Control Format: Short Press: ON / OFF; Press & Hold: DIM
• Analogue Control Type 1-10V / 10V PWM Dimming
• Analogue (1-10V) Parameters: Upto 20 drivers with 30 metres maximum overall length
• Analogue (1-10V) Information: An additional isolation switch will be required to turn the driver On and Off

Compatible Fittings

• Alupanel: OV6209 & OV6212
